Genuine Mercedes-Benz Engine Oil Filter Element – M271 Engine

Specification Overview

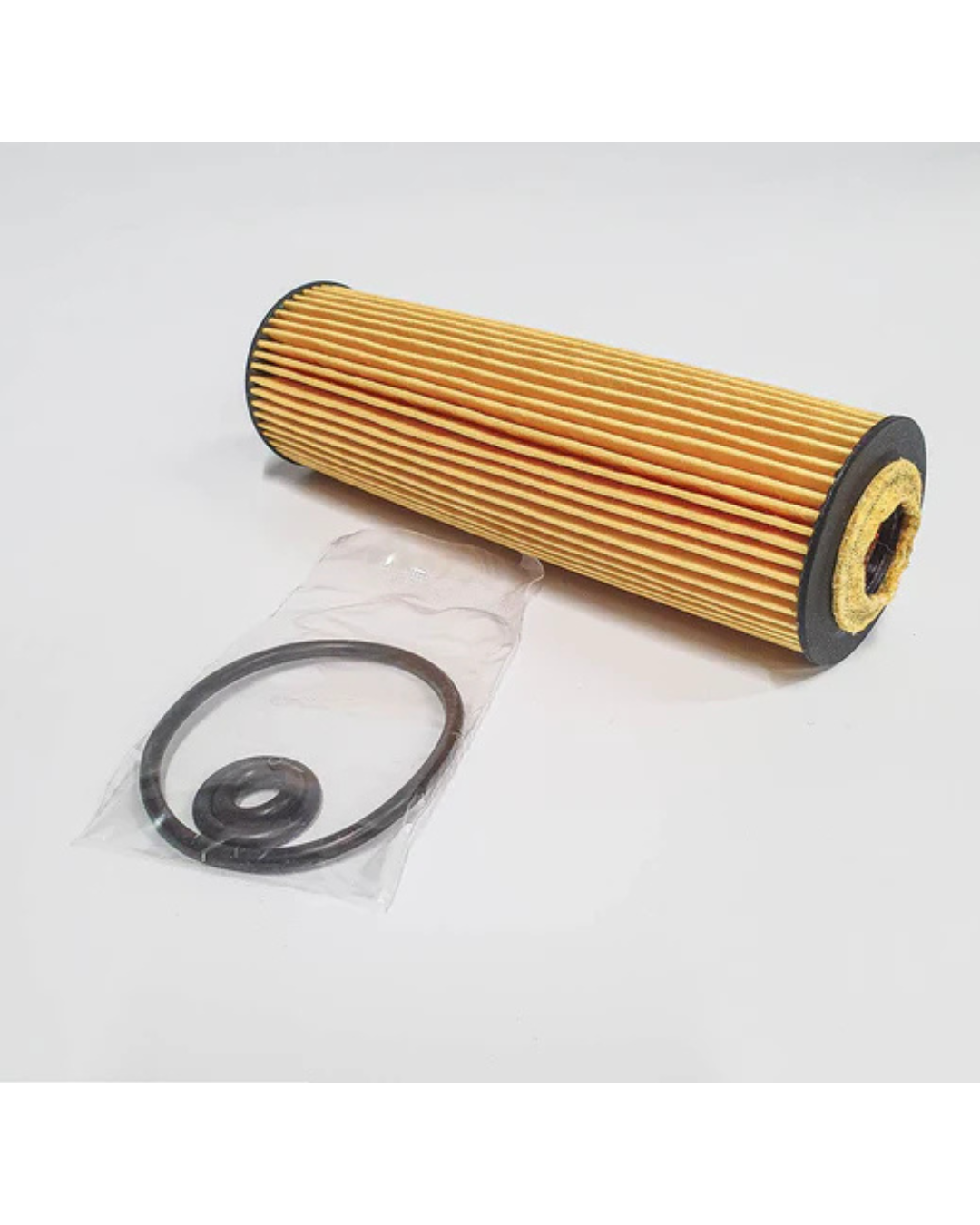

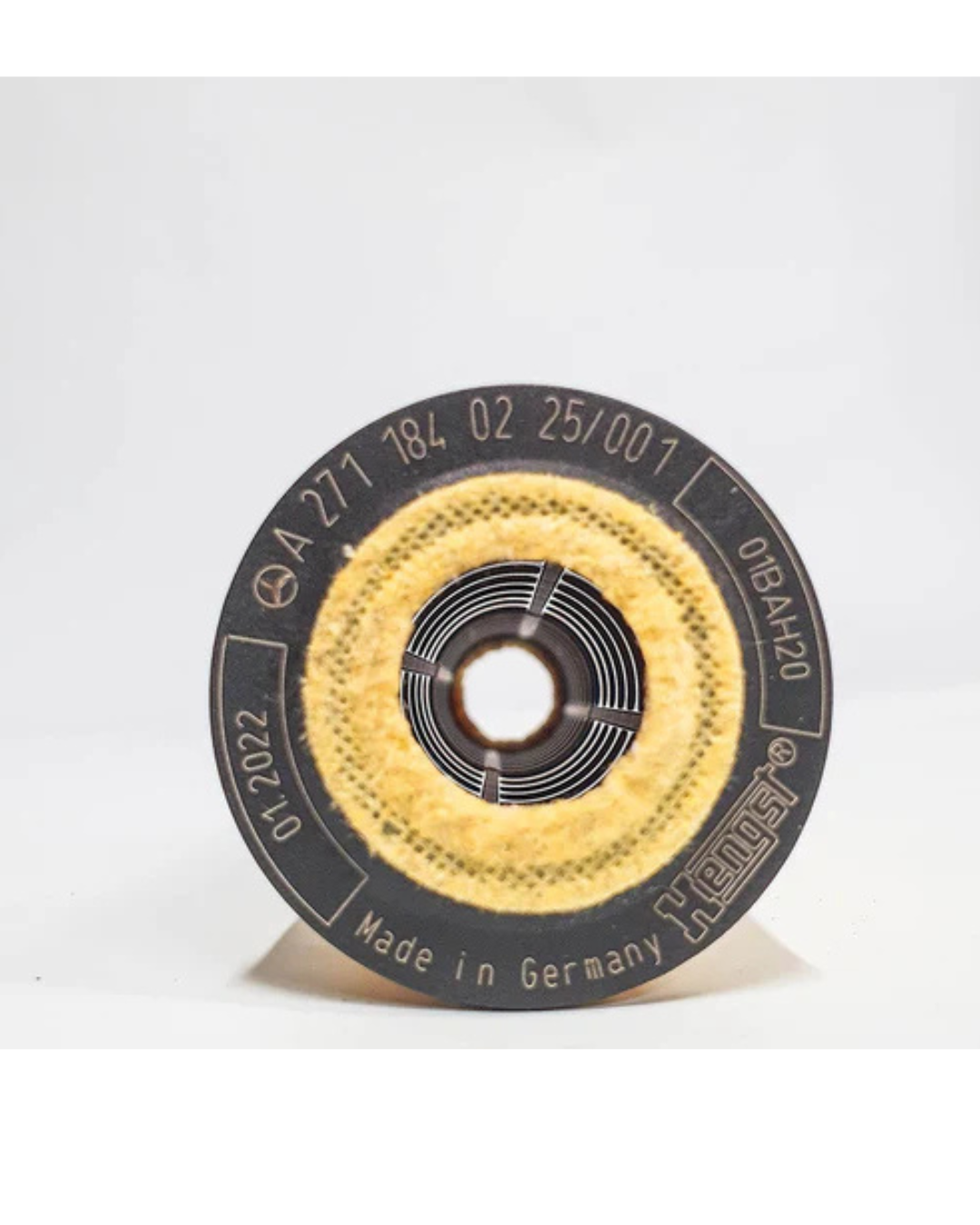

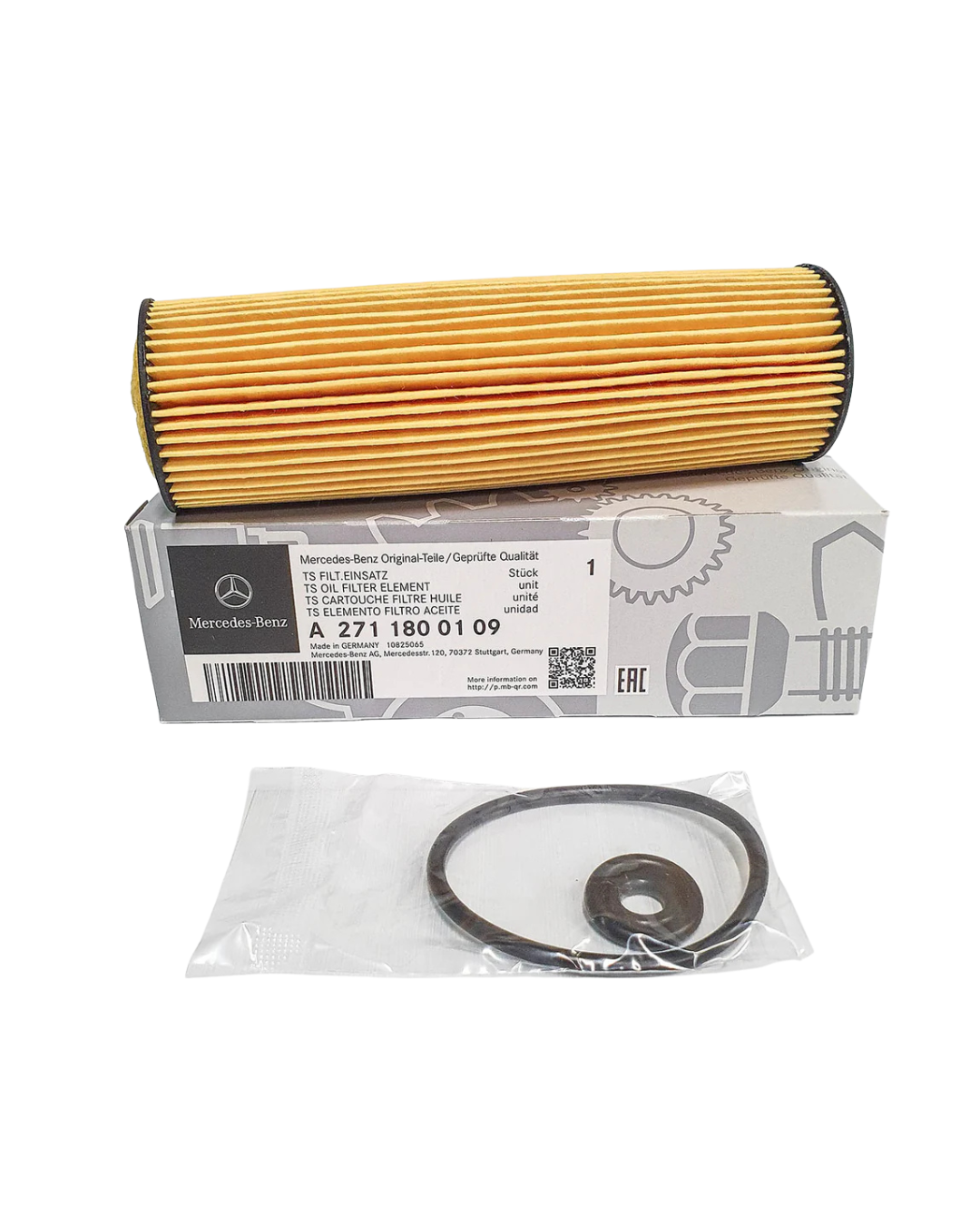

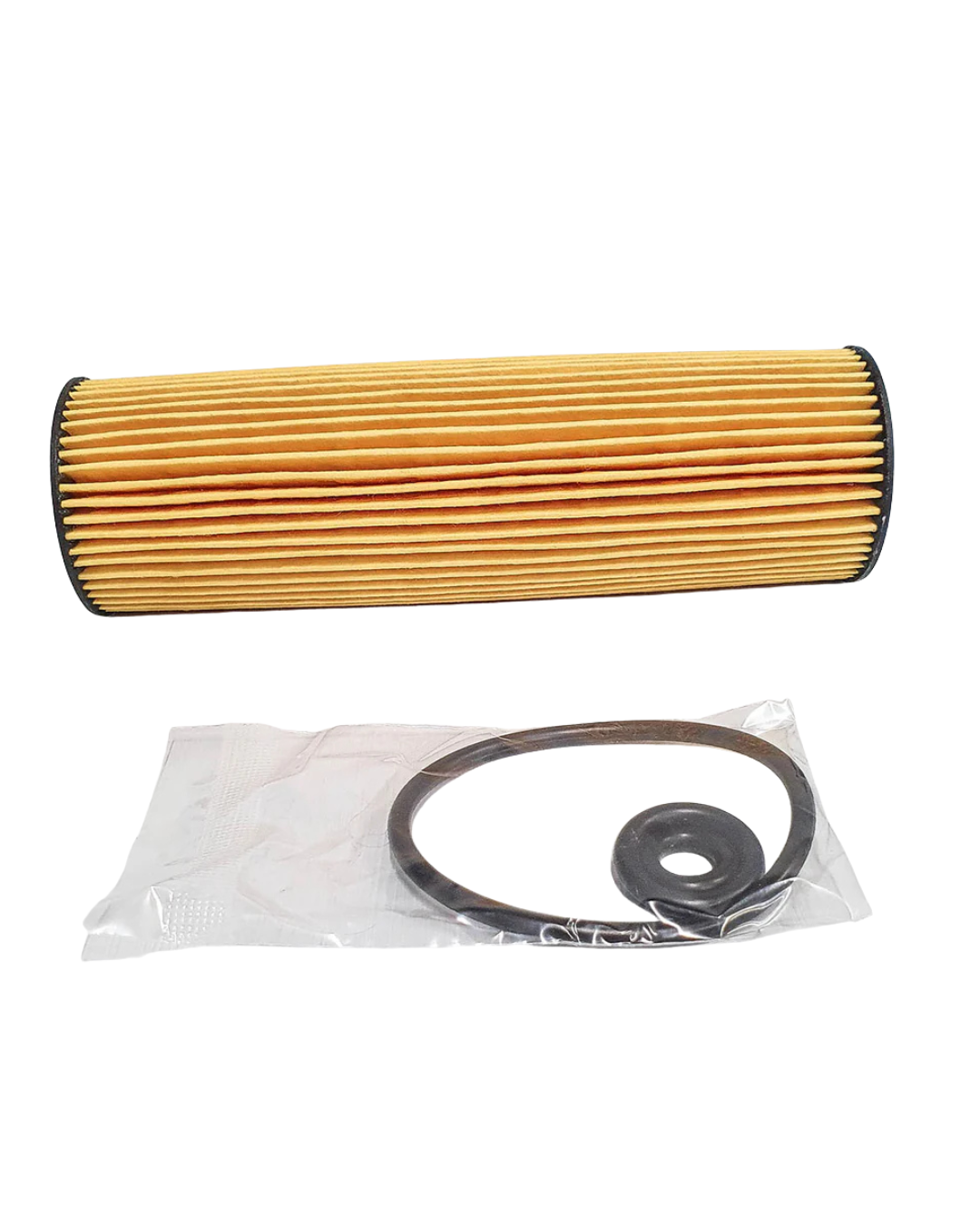

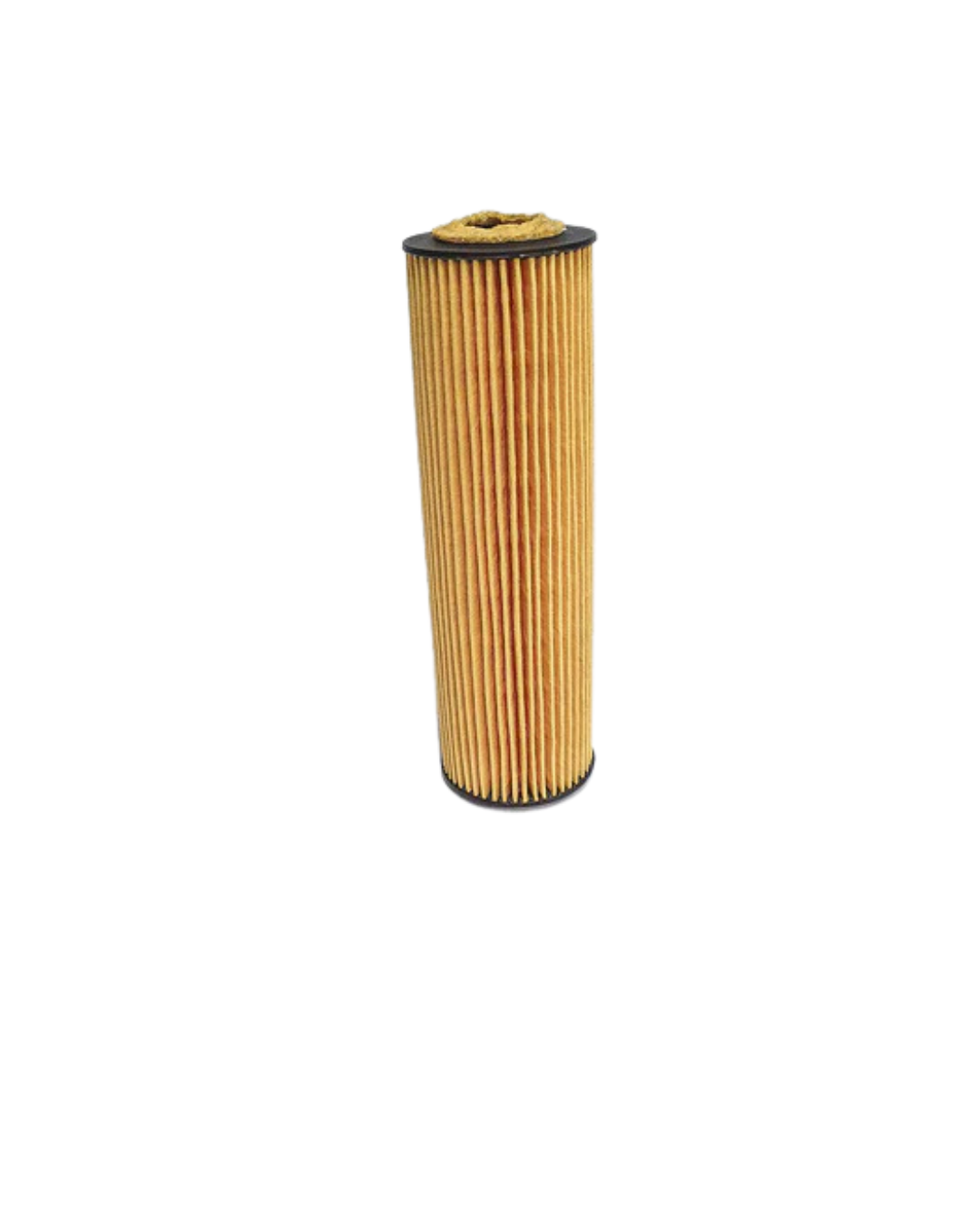

Genuine Mercedes-Benz cartridge-style engine oil filter element with integrated rubber seals. Designed specifically for the M271 1.8L 4-cylinder petrol engine family, available in both Kompressor (supercharged) and CGI (direct injection) variants. The filter element uses high-density micro-fiber media to trap harmful contaminants, soot particles, and metallic wear debris while maintaining optimal oil flow and pressure.

• Type: Cartridge oil filter element with integral O-ring seals

• Outer Diameter: 46.3 mm

• Inner Diameter: 21.5 mm

• Height: 154 mm – 156.6 mm

• Material: High-density cellulose/synthetic blend media with rubber gaskets

• OE Numbers: A2711800109, 2711800109, 2711800009, A2711800009

• Cross References: MANN HU 514 x, Mahle OX 183/1D ECO, Bosch 0986AF1505

---

Application & Engine Fitment

This filter is the factory-spec replacement for the M271 series 1.8L 4-cylinder petrol engines, including both Kompressor (supercharged) and CGI (direct injection) variants.

Primary Engine Applications:

Comprehensive Model Fitment:

⚠️ Important: This filter is designed for petrol engines only. Do not use on diesel engines (OM series). Always verify your specific engine code before ordering.

---

Service Life & Change Intervals (Technical Data)

Mercedes-Benz recommends replacing the oil filter at every engine oil service. The filter element is the primary defence against abrasive particles that cause premature wear to bearings, piston rings, and timing chain components.

Standard Recommended Interval:

• Every engine oil change (10,000 km – 15,000 km under normal conditions)

Critical Adjustment for Kampala (Severe Operating Conditions):
The operational climate (ambient temperatures 20°C–40°C), high humidity, stop-and-go urban traffic, and high dust loads classify as “Severe Duty” per MB Work Instructions. Under these conditions, the filter media loads with contaminants faster.

Recommended Replacement Interval under East African operating parameters:

• Maximum: 10,000 km or 12 months (whichever occurs first)

• Supercharged (Kompressor) units: Do not exceed 8,000 km under heavy urban operation to prevent oil bypass (filter clogging) and supercharger oil starvation

⚠️ Important: Always replace the filter element at every oil change. The filter element comes with integral rubber seals – ensure these are lubricated with fresh oil before installation to prevent seal damage.

---

Packaging & Pricing (Alps Autoz Kampala)

Often Replaced Together:
For a complete oil service, replace the following simultaneously:

• Engine oil (MB 229.5 5W-40 or 0W-40 – M271 engines require MB 229.5 specification)

• Oil drain plug washer (N007603014106 or equivalent)

• Engine air filter (per chassis application)

---

Technical Notes for the Workshop

• Installation: This is a cartridge-style element that fits inside a housing. Lubricate the rubber O-rings with clean engine oil before installation to ensure proper sealing and prevent damage.

• Seal Kit Included: The genuine filter includes both upper and lower O-ring seals. Do not purchase a filter that does not include seals.

• Torque Specification: Housing cap torque: 25 Nm (refer to specific model service manual).

• Genuine vs. Aftermarket: Genuine MB A2711800109 is manufactured to OEM specifications. Equivalent aftermarket brands with cross-reference include:

  • MANN-FILTER HU 514 x

  • Mahle OX 183/1D ECO

  • Bosch 0986AF1505

  • Hengst E38H D106

• Storage: Shelf life of 5 years in unopened, sealed packaging. Store in a dry environment away from direct sunlight.

• Compatibility Note: This filter is not compatible with M272, M273, or any diesel engines. Use only for M271 1.8L petrol applications.

---
